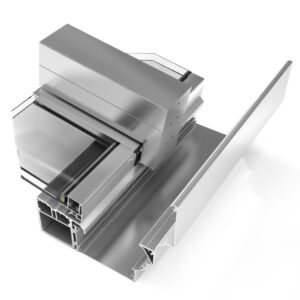

Sliding and automatic adjustable roof system. Combination of styles, robustness, convenience and great performance. Maximum opening possibility of 66% of the surface area. This system provides good ventilation and allows for a total entry of light from above.

It has all types of complementary profiles to facilitate water collection and drainage that guarantee total water tightness.

Technical data

– Incline / Slope
Profiles prepared for an inclination of 8,5° (15%)

– Maximum roof distance
4,800 mm

– Minimum roof distance
3,100 mm

– Roof’s width
Unlimited when joining modules

– Glazing possibilities
25 mm cellular polycarbonate
24 mm sandwich panel
24 mm glass. (4 tempered/ 12 /4+4)

– Opening possibilities
Sliding: 2 sashes and 1 fixed module and multiple falls

– Sections
Frame – 133 mm / Sash – 28 mm

– Profile thickness
Sashes 1.5 mm

– Maximum dimensions
Polycarbonate and sandwich panel:
Width (L) = 2,300 mm
Glazing:
Width (L)= 1,200 mm
Height (H) = 1,600 mm

– Maximum weight
75 kg

– Finishes
Colour powder coating (RAL, mottled and rough)
Wood effect powder coating
Anti bacterial paint
Anodising
