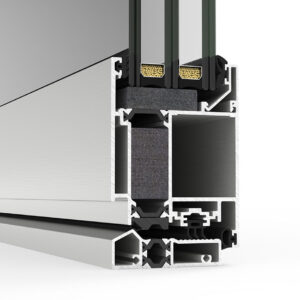

Coplanar door entry system with straight lines and frame depth of 70 mm. It allows for the set up of an emergency exit with anti-panic devices according to EN 179 & EN 1125 regulations. Resistance to repeated openings and closings (EN 1191:2000) : 1,000,000 cycles.

Possibilities
– Concealed hinges
– Accessibility
– Automation

Technical data

– Glazing
Max. 54 mm
Mín. 15 mm

– Opening possibilities

Inward opening:
Side hung

Hidden Top Hung
Side hung

Automatic opening:
Internal and external hinged single sash

–
Side hung

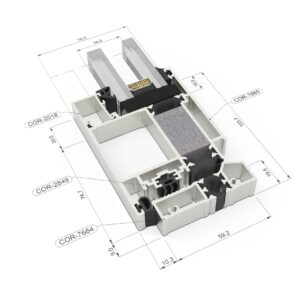

– Sections
Frame 70 mm
Sash 70 mm

– Profile thickness
2,0 mm

– Polyamide strip length
24 mm

– Maximum sash dimensions

Door:
Width (L) 1800 mm
Height (H) 3000 mm

Hidden hinges door:
Width (L) 1500 mm
Height (H) 2700 mm

– Maximum weight/sash
220 Kg / 120 Kg (Hidden hinges)

Consult maximum weight and dimensions according to typologies.

– Finishes
Possibility of bicolor systems
Color powder coating (RAL, mottled and rough)
Wood effect powder coating
Anti-bacterial powder coating
Anodized
