Equity Façade

Equity Façade

Facade Systems.

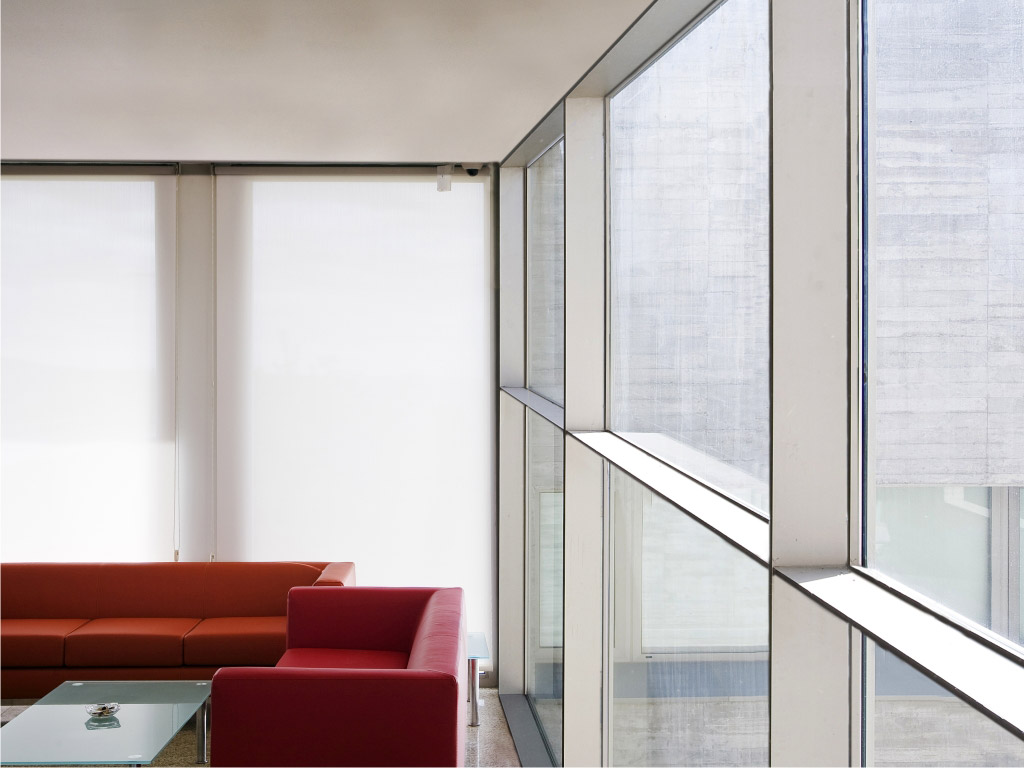

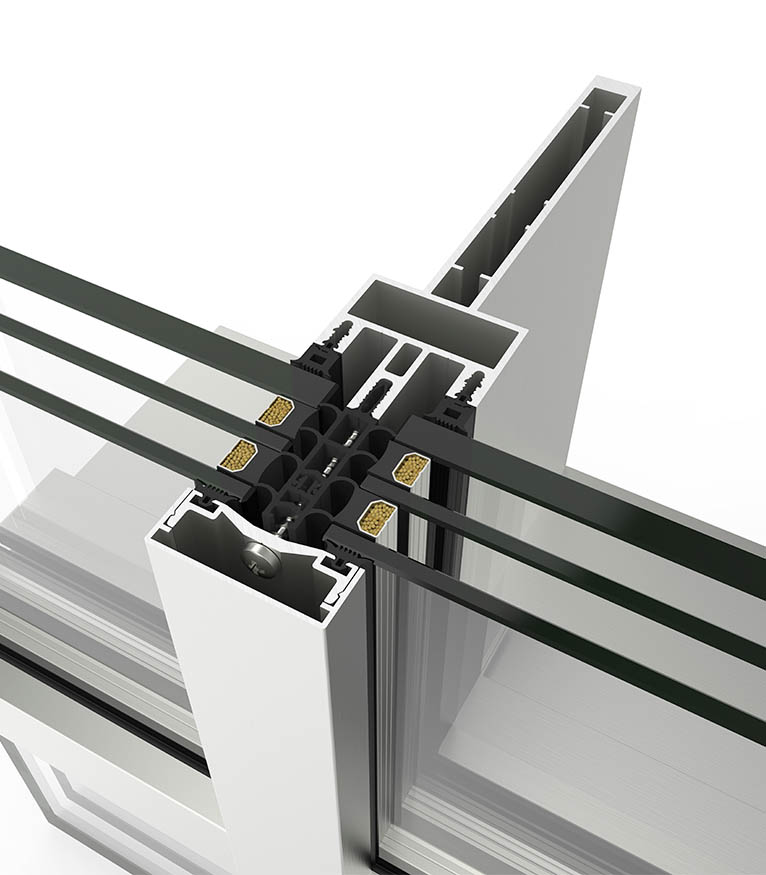

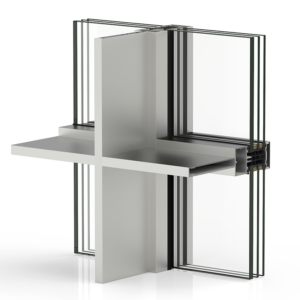

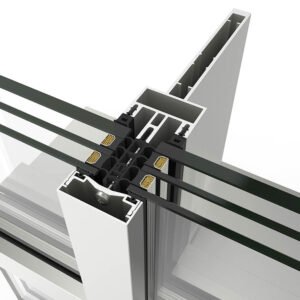

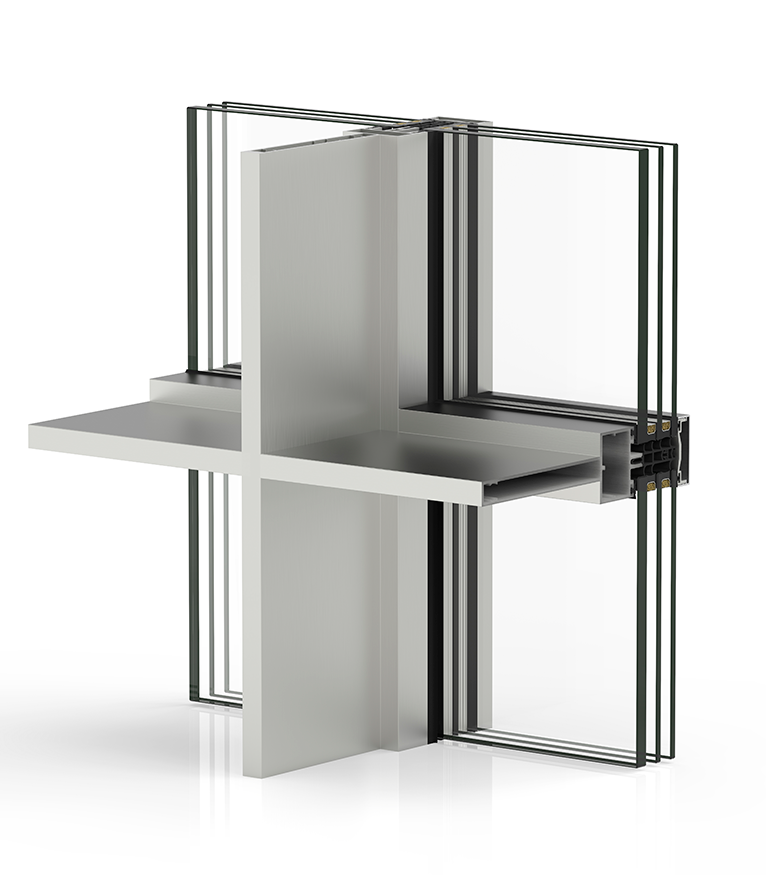

Internal seen section of just 18 mm. Minimalist and slim look . Its mullions and transoms offer, as a result of their joint, an uniform union on the outside face of the curtain wall.

The combination of mullions and transoms is compatible with the following systems: TP 52, SG 52, TPH 52, TPV 52, ST 52 and SST 52.

Technical data

– Glazing
Maximum glazing 64 mm
Mínimum glazing 4 mm

– Sections

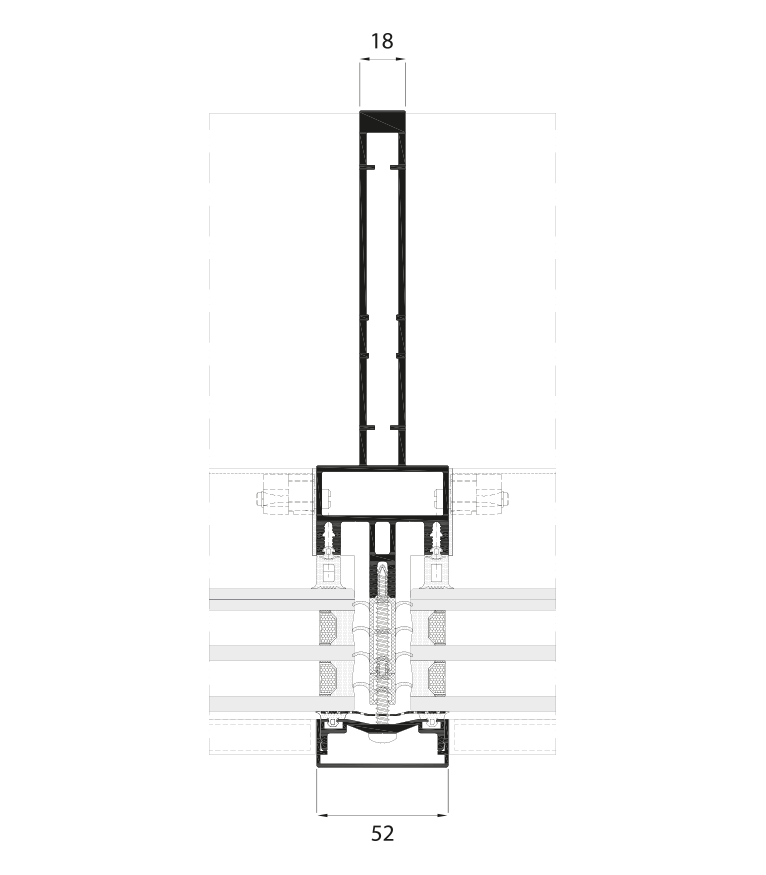

Mullion 18 mm
Transom 18 mm

– Thermal break
18 mm

– Profile thickness
26 mm (Mullion – Transom)

– Polyamide strip length
6, 12 & 30 mm stackable profiles

– Covers
85 mm deep elliptical cover
H shape cover, 34 mm deep
Rectangular cover: 14, 19 100 & 145 mm deep
Pyramid shape cover, 155 mm deep

– Finishes
Possibility of bicolor systems
Color powder coating (RAL, mottled and rough)
Wood effect powder coating
Anti-bacterial powder coating
Anodized
